Description

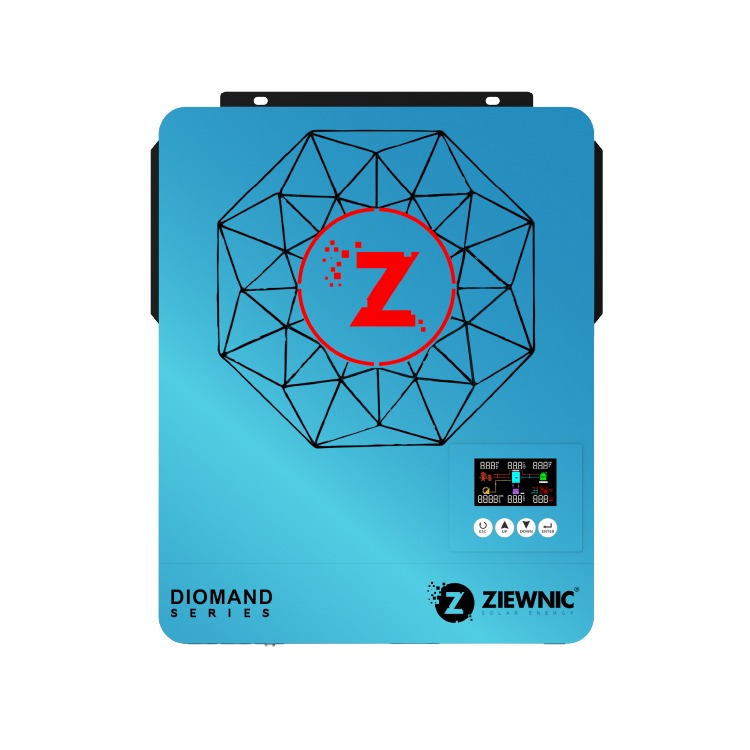

🌟 Diamond Series – 1st Time in Pakistan! Real 5th Gen Inverter

✅ First in Pakistan: Real 5th Gen inverter technology
✅ High-efficiency MOSFET with larger-size Chopper
✅ Multiple operation modes: ON / OFF / MKS / KS
✅ 100% Pure Sine Wave output with power factor 1.0
✅ Optional Wi-Fi connectivity (iOS & Android)
✅ Operates with or without batteries
✅ 1-button restore setting (Program 00)
✅ Battery equalization function (Program 30)
✅ Fault code recording feature (Program 25)
✅ Compatible with mains voltage & generator power
✅ Conformal coating for dust & humidity protection
✅ Built-in electronic breaker for overload & short-circuit safety
✅ New color LCD screen with touch buttons
✅ Anti-dust design for harsh environments
✅ Compatible with all types of lithium batteries
✅ 98% real-time sharing efficiency
✅ Overload protection at 120% load
✅ Surge capacity: 2× rated power for 5 seconds
✅ Battery charging current up to 260A (AC + Solar)
✅ MPPT solar charge controller (160A)
✅ High PV input voltage range: 90~550 VDC
✅ Two outputs: normal load & heavy load
✅ Maximum PV input current: 27A
✅ Supports On-Grid / Off-Grid / Hybrid operation
✅ Grid-tied net metering with 100% reverse feeding
✅ Built-in zero export function
✅ Designed & engineered in Taiwan
